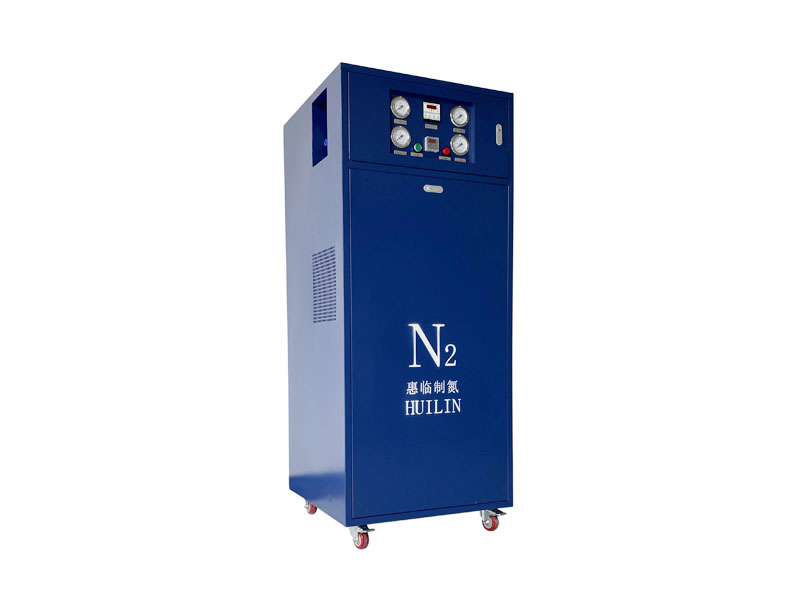

Small Nitrogen Generator

HUILIN small Nitrogen Generator adopt PSA(Pressure Swing Adsorption) technology with compressed air as material, picking-up N2 of purity 95%~99.999% from the air, Widely used in industrial fields or laboratories with low gas consumption, especially suitable for food preservation packaging.

HUILIN Small Nitrogen Generator Characteristics

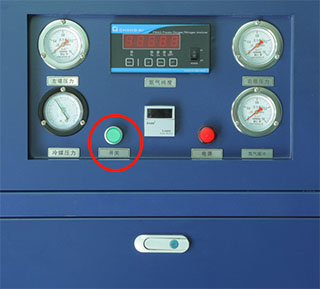

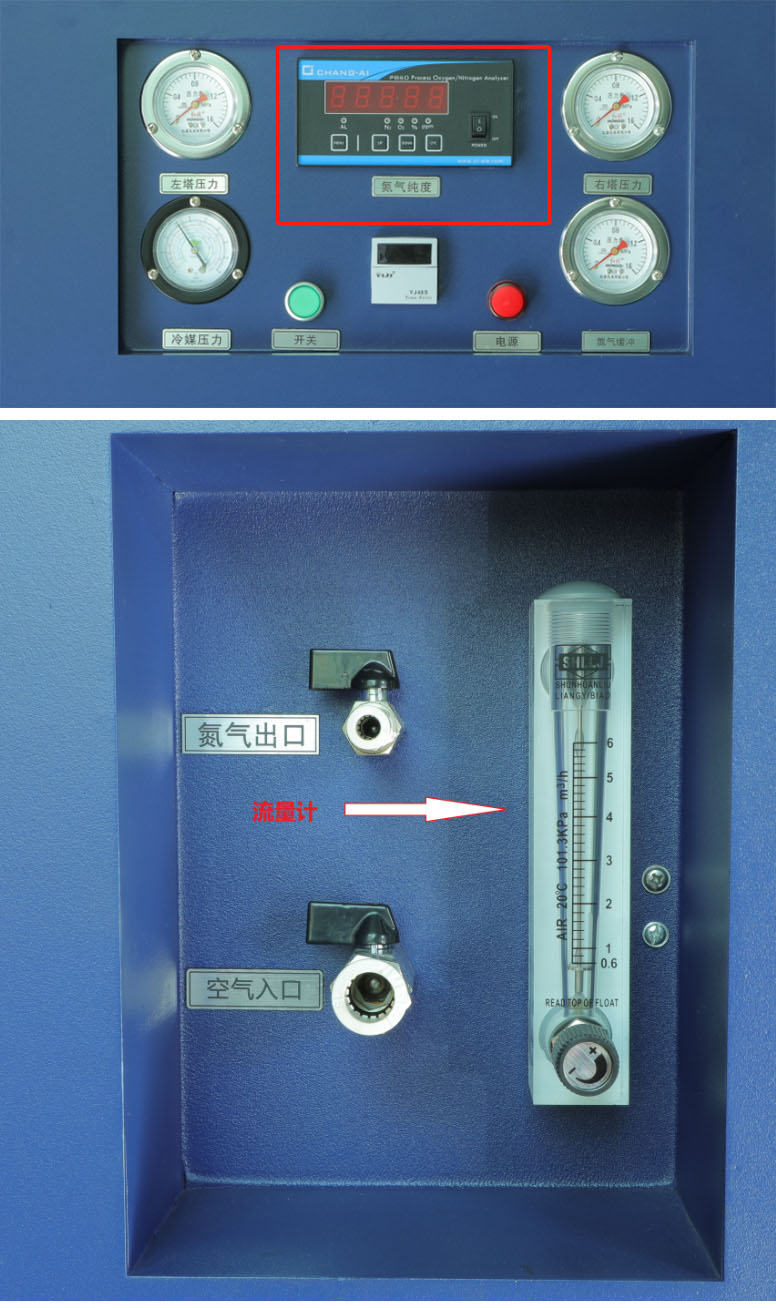

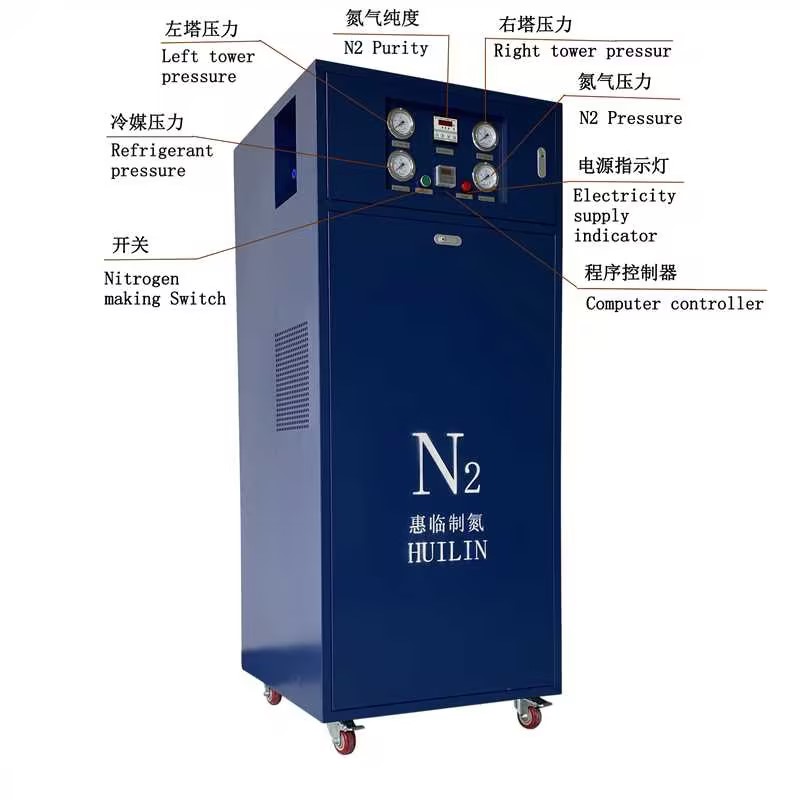

	One button ON or OFF after electronic and gas linking,easy installation and operation.		The purity and flow rate of N2 are displayed online by a nitrogen purity analyzer and flow meter, ensuring that the quality and yield of nitrogen are intuitive, accurate, and reliable;

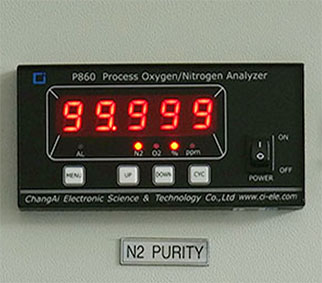

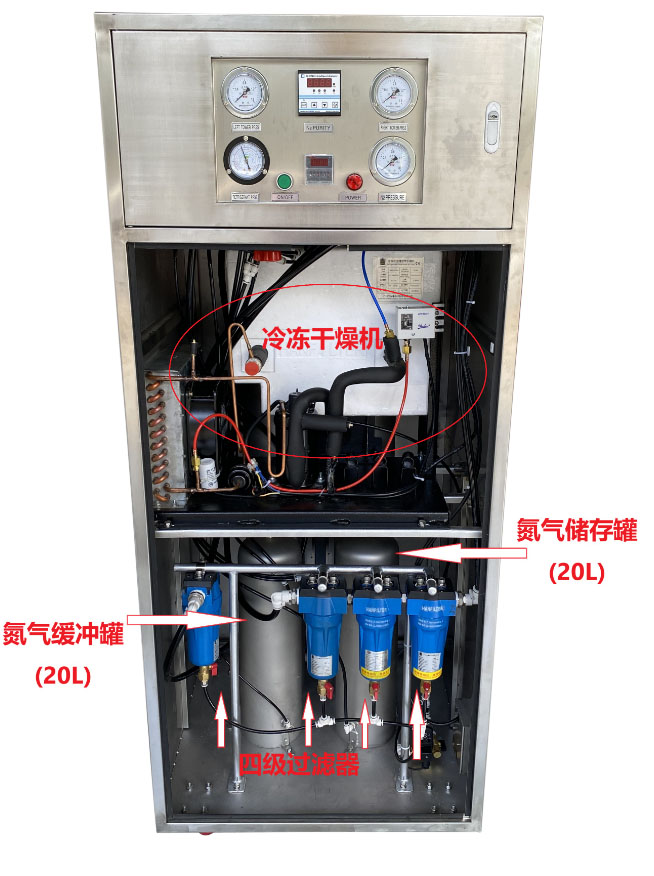

	The purity of N2 can be adjusted within the range of 97% to 99.999% to meet the requirements of different usage scenarios		Equip four grades filters and drier to remove water,oil and impurity of compressed air to make sure N2 generator running smoothly and steady,guarantee life achieve more than 10 years.

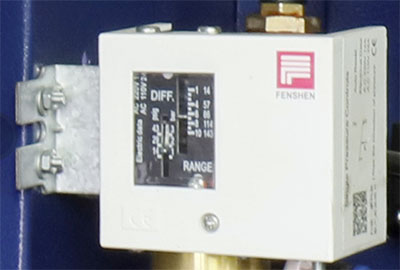

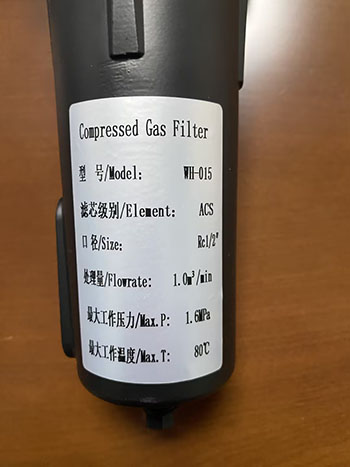

	Particular filter of material active carbon,remove tink and peculiar to ensure the pure smell of the material food.		Ganged pressure,automatic stop once unused gas at the end of the machine;saving compressed air,convenient management.

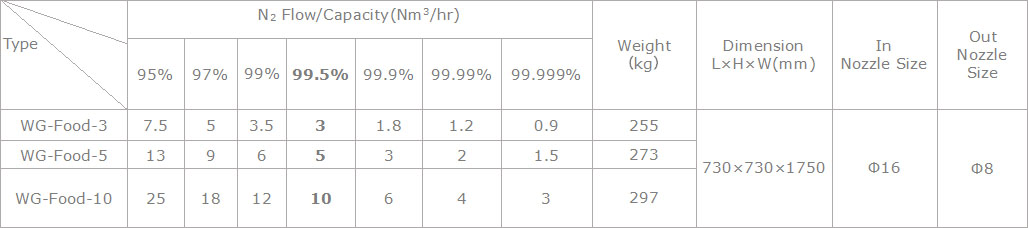

Specifications:

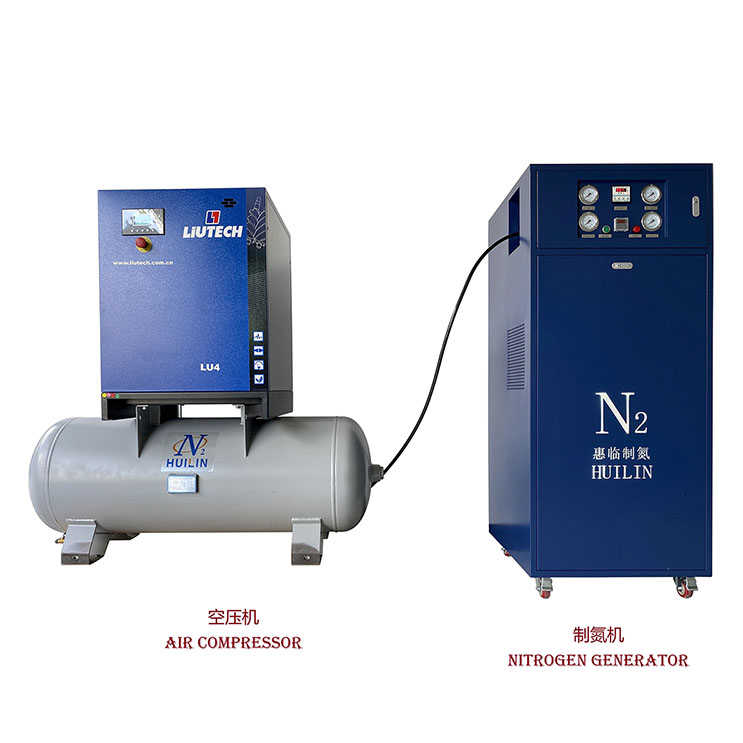

Nitrogen generator generally function include power and compressed air consumption needed as followed:

Usable Condition:

Inlet Temperature：≤80℃

Ambient Temperature：≤-10℃-40℃

Installation Condition:  Well ventilation without dust and oil -pollution

Installation Location:   Flat indoors place,don't need groundsill,distance from wall ≥80cm
