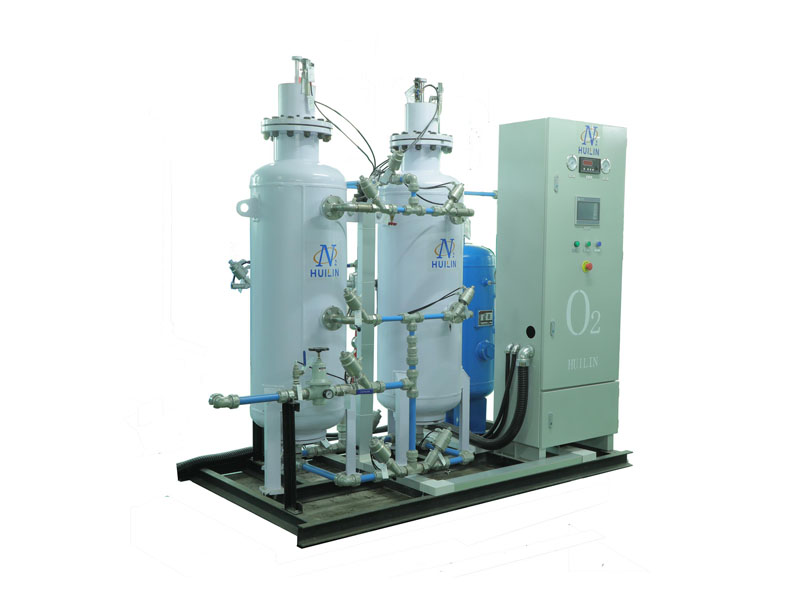

Medical Oxygen Gas Generator

Energy saving, high efficiency, universal oxygen machine.The highest purity was±93%

Lead Time:30days

Product Orgin:Guangzhou,China

Shipping Port:Guangzhou

Payment:This supplier also supports L/C,D/A,D/P,T/T,W

Price:$50000/set

Market Price:$100000

Color:white

INQUIRY NOW

PRODUCT DETAILS

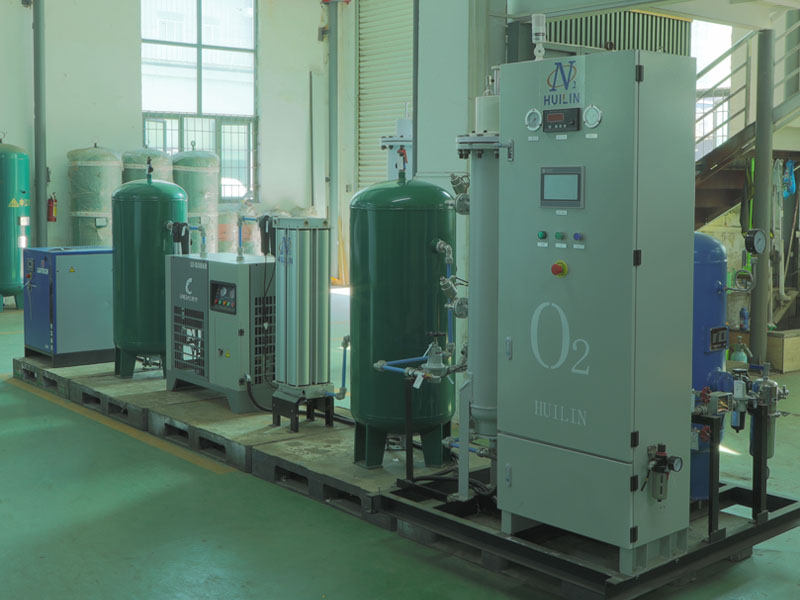

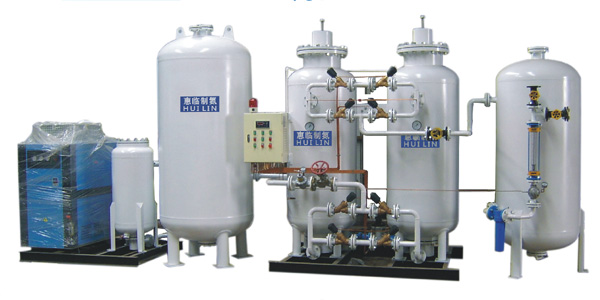

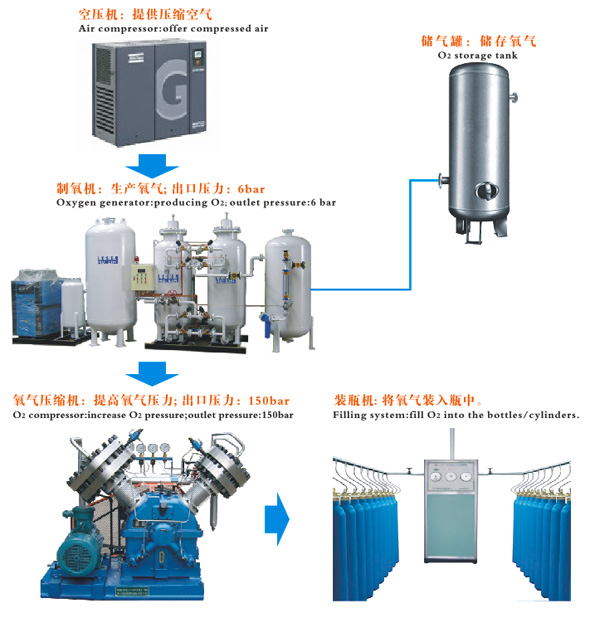

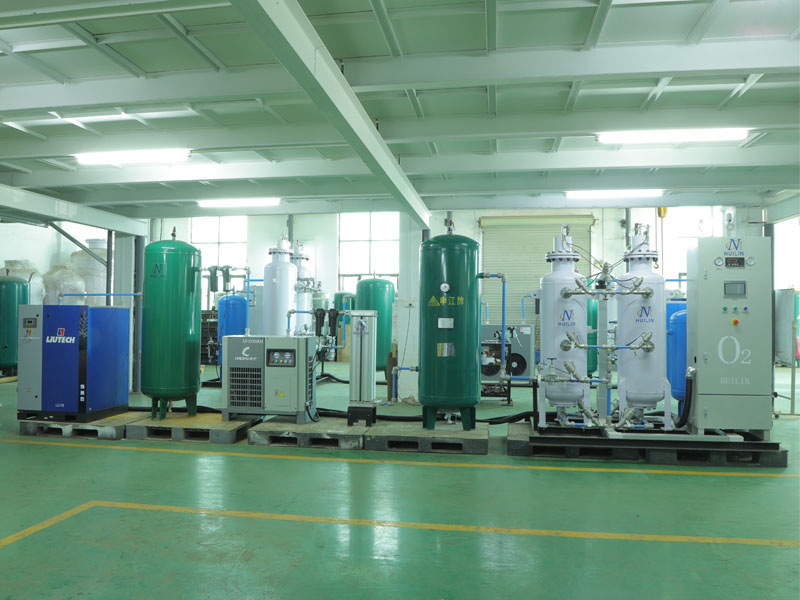

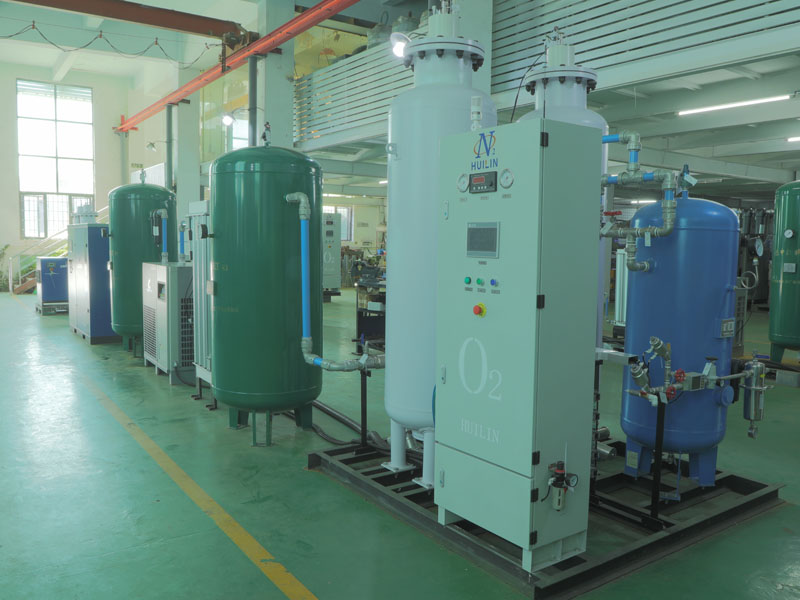

The HUILIN medical oxygen generator utilizes air as the raw material and employs PSA (Pressure Swing Adsorption) technology to produce medical oxygen with stable concentration. The system features high automation, safe and reliable operation, low energy consumption, and easy maintenance, providing hospitals with a continuous, stable, and economical centralized oxygen supply solution.

Features/Advantages

• Fast oxygen production speed, stably outputting 93% ± 3% medical oxygen within 30 minutes;

• High degree of automation, PLC intelligent control, simple operation, and convenient operation and maintenance

• Supports remote monitoring and alarming, real-time monitoring of purity and pressure, and fault early warning

• Operates at normal temperature and pressure, with long molecular sieve service life, low energy consumption, and low operating cost

• Continuous and stable oxygen supply for 24 hours, no risk of supply interruption, ensuring clinical needs

• On-site oxygen production for self-sufficiency, not relying on liquid oxygen/cylinders, and not restricted by transportation

• Oxygen purity is stably up to standard, meets medical standards, and satisfies scenarios such as ICU

• Low maintenance cost, easy to repair, can switch to backup in case of power failure, ensuring continuous oxygen supply

Selection Table

Selection Table
Model	O2 Output（Nm3/hr）	O2 Purity	Power(kw)	Delivery date（Day）
WG-STD-5	5	93±3%	8.12	45
WG-STD-10	10		16.13	45
WG-STD-15	15		19.9	45
WG-STD-20	20		23.4	45
WG-STD-25	25		31.8	45
WG-STD-30	30		39.5	45
WG-STD-40	40		48.3	45
WG-STD-50	50		58.5	60
WG-STD-60	60		79.95	60
WG-STD-70	70		79.95	60
WG-STD-80	80		95.8	60
WG-STD-90	90		115.5	60
WG-STD-100	100		138.12	60
Note：1、O2 Purity：93±3%； 2、O2 Outlet pressure：4-5bar；
